51746

Especificaciones Técnicas

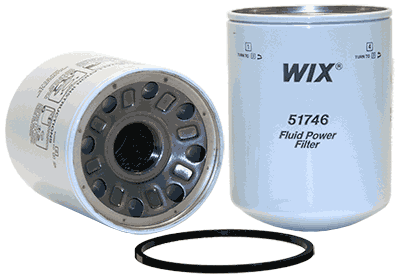

• Part Number: 51746
• UPC Number: 765809517462
• Style: Spin-On Hydraulic Filter
• Service: Hyd/Transmission
• Type: Full Flow
• Media: Enhanced Cellulose
• Height: 6.872 (175)*
• Outer Diameter Top: 5.007 (127)*
• Outer Diameter Bottom: Closed:
• Thread Size: 1 1/2-16
• Beta Ratio: 2/20=2/7
• Burst Pressure-PSI: 335
• Max Flow Rate: 28-30 GPM
• Nominal Micron Rating: 5

Diámetros

• 15386 Packed: 5.072 (129)* * 4.692 (119)* * 0.187 (5)*
• 15661 8: 5.03 (128)* * 4.44 (113)* * 0.19 (5)*
• 15859 8: 4.762 (121)* * 4.484 (114)* * 0.139 (4)*

Principales aplicaciones

• Principle Application: Cat, Ford/New Holland Equipment (5 Micron) - Gasket 15386 for narrow grove is packed w/ filter - if wide groove gasket required, order 15661 - order separately If L-shaped gasket required, order 15658& 06/22/2023, (PM)
