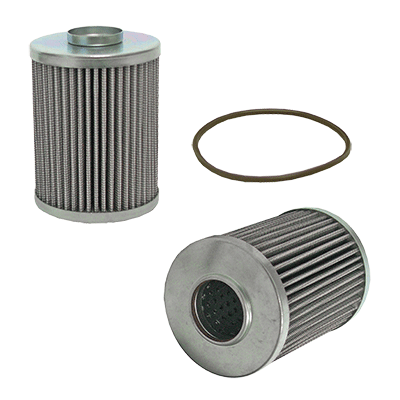

D77E10GAV

Especificaciones Técnicas

• Part Number: D77E10GAV
• UPC Number: 765809576308
• Style: Cartridge Hydraulic Metal Canister Filter
• Service: Hydraulic
• Type: Full Flow
• Media: Microglass
• Height: 3.9 (99)*
• Outer Diameter: 2.9 (74)*
• Inside Diameter Top: Closed:
• Inside Diameter Bottom: 1.26 (32)*
• Beta Ratio: B200=10
• Nominal Micron Rating: 10
• Operating Temp. (min): -22
• Operating Temp. (max): 212
• Filter Area: 201

Diámetros

• Attached / Packaged: 0.0 ()* * 0.0 ()* * 0.0 ()*
• Attached: 0 ()* * 0 ()* * 0 ()*

Principales aplicaciones

• Principle Application: Fairey Arlon Hydraulics
