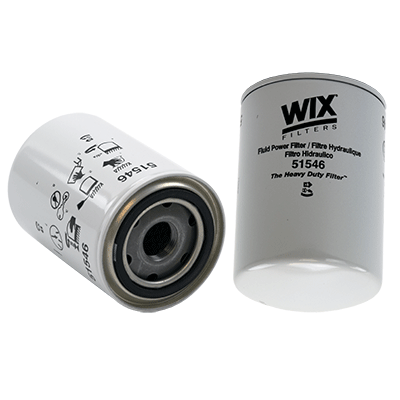

51546

Especificaciones Técnicas

• Part Number: 51546
• UPC Number: 765809515468
• Style: Spin-On Hydraulic Filter
• Service: Hydraulic
• Type: Full Flow
• Media: Enhanced Cellulose
• Height: 5.473 (139)*
• Outer Diameter Top: 3.672 (93)*
• Outer Diameter Bottom: Closed:
• Thread Size: 3/4-14 BSP
• Beta Ratio: 2/20=10/25
• Burst Pressure-PSI: 340
• Max Flow Rate: 7-9 GPM
• Nominal Micron Rating: 16

Diámetros

• Attached: 2.834 (72)* * 2.462 (63)* * 0.255 (6)*

Principales aplicaciones

• Principle Application: UCC Hydraulic Systems
