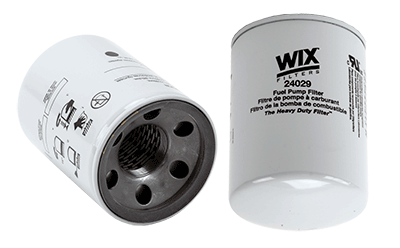

24029

Especificaciones Técnicas

• Part Number: 24029
• UPC Number: 765809240292
• Style: Spin-On Fuel Filter
• Service: Fuel
• Type:
• Media: Enhanced Cellulose
• Height: 5.171 (131)*
• Outer Diameter Top: 3.698 (94)*
• Outer Diameter Bottom: Closed:
• Thread Size: 1 1/2-16
• Beta Ratio: 2/20/75=7/20/25
• Burst Pressure-PSI: 530
• Max Flow Rate: 28-30 GPM
• Nominal Micron Rating: 10

Diámetros

• Attached: 3.437 (87)* * 2.930 (74)* * 0.218 (6)*

Principales aplicaciones

• Principle Application: Fuel Pump Dispensing Filter - can use with 24746 base (10 micron)
