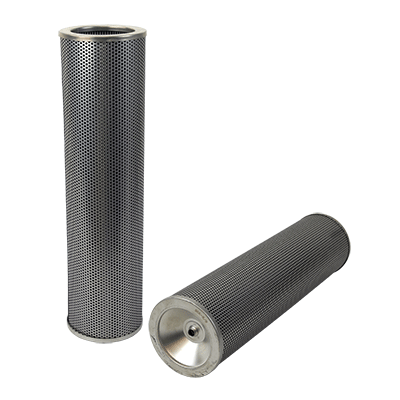

R18D10G

Especificaciones Técnicas

• Part Number: R18D10G
• UPC Number: 765809700369
• Style: Cartridge Hydraulic Metal Canister Filter
• Service: Hydraulic
• Type: Full Flow
• Media: Microglass
• Height: 18.898 (480)*
• Outer Diameter: 4.961 (126)*
• Inside Diameter Top: 3.622 (92)*
• Inside Diameter Bottom: 0.409 (10)*
• Thread Size:
• Beta Ratio: 200/9.9
• Nominal Micron Rating: 10
• Operating Temp. (min): -13
• Operating Temp. (max): 248
• Flow Direction: Inside-Out
• Capacity: 135.07
• Filter Area: 1380

Diámetros

• Attached: 0.0 ()* * 0.0 ()* * 0.0 ()*

Principales aplicaciones

• Principle Application: Various Industrial Hydraulic Applications
