W03AT1428

Especificaciones Técnicas

• Part Number: W03AT1428
• UPC Number: 765809783638

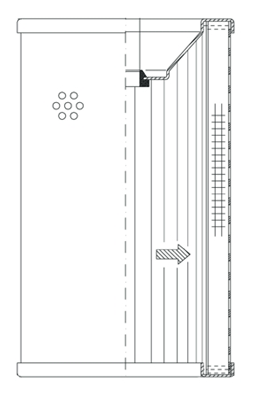

• Style: Cartridge Hydraulic Metal Canister Filter
• Service: Hydraulic
• Type: Full Flow
• Media: Stainless Mesh
• Height: 13.78 (350)*
• Outer Diameter: 3.62 (92)*
• Inside Diameter Top: 0.45 (11)*
• Inside Diameter Bottom: 2.52 (64)*
• Nominal Micron Rating: 60
• Operating Temp. (min): -13
• Operating Temp. (max): 248
• Flow Direction: Inside-Out
• Filter Area: 359

Diámetros

• Attached: 0.0 ()* * 0.0 ()* * 0.0 ()*

Principales aplicaciones

• Principle Application: Various Industrial Hydraulic Applications
