R33D10GP

Especificaciones Técnicas

• Part Number: R33D10GP
• UPC Number: 765809375697

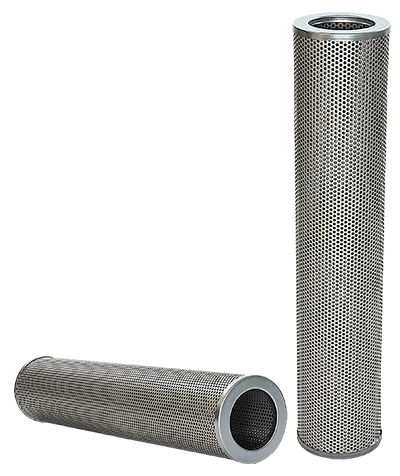

• Style: Cartridge Hydraulic Metal Canister Filter
• Service: Hydraulic
• Type: Full Flow
• Media: Microglass
• Height: 20.472 (520)*
• Outer Diameter: 4.173 (106)*
• Inside Diameter Top: 2.835 (72)*
• Inside Diameter Bottom: 1.221 (31)*
• Thread Size:
• Beta Ratio: 200/9.9
• Nominal Micron Rating: 10
• Operating Temp. (min): -13
• Operating Temp. (max): 248
• Flow Direction: Inside-Out
• Capacity: 120.8
• Filter Area: 1234

Diámetros

• Attached: 0.0 ()* * 0.0 ()* * 0.0 ()*

Principales aplicaciones

• Principle Application: Various Industrial Hydraulic Applications
