Especificaciones Técnicas
- Part Number: R30C25GB
- UPC Number: 765809828322

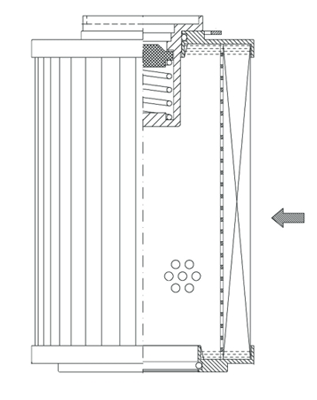

- Style: Cartridge Hydraulic Metal Canister Filter
- Service: Hydraulic
- Type: Full Flow/By-Pass
- Media: Microglass
- Height: 10 (254)*
- Outer Diameter: 5.118 (130)*
- Inside Diameter Top: 2.539 (64)*
- Inside Diameter Bottom: Closed:
- Thread Size:
- By-Pass Valve Setting-PSI: 25 PSI
- Beta Ratio: 200/20.7
- Nominal Micron Rating: 25
- Operating Temp. (min): -13
- Operating Temp. (max): 248
- Flow Direction: Outside-In
- Capacity: 93.8
- Filter Area: 1045
Diámetros
- Attached: 0.0 ()* * 0.0 ()* * 0.0 ()*
Principales aplicaciones
- Principle Application: Various Industrial Hydraulic Applications
