Especificaciones Técnicas
- Part Number: R20C10CB
- UPC Number: 765809828094

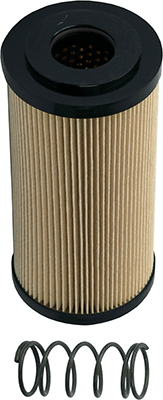

- Style: Cartridge Hydraulic Metal Canister Filter
- Service: Hydraulic
- Type: Full Flow/By-Pass
- Media: Cellulose
- Height: 8.425 (214)*
- Outer Diameter: 3.898 (99)*
- Inside Diameter Top: 1.595 (41)*
- Inside Diameter Bottom: Closed:
- Thread Size:
- By-Pass Valve Setting-PSI: 25 PSI
- Beta Ratio: 2/10
- Nominal Micron Rating: 10
- Operating Temp. (min): -13
- Operating Temp. (max): 248
- Flow Direction: Outside-In
- Capacity: 23.09
- Filter Area: 577
Diámetros
- Attached: 0.0 ()* * 0.0 ()* * 0.0 ()*
Principales aplicaciones
- Principle Application: Various Industrial Hydraulic Applications
| Nombre del fabricante | N° de pieza del fabricante |
|---|
