D45B10GV

Especificaciones Técnicas

• Part Number: D45B10GV
• UPC Number: 765809825550

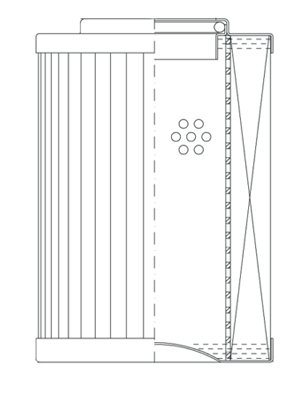

• Style: Cartridge Hydraulic Metal Canister Filter
• Service: Hydraulic
• Type: Full Flow
• Media: Microglass
• Height: 12.913 (328)*
• Outer Diameter: 3.563 (90)*
• Inside Diameter Top: 1.898 (48)*
• Inside Diameter Bottom: Closed:
• Thread Size:
• Beta Ratio: 200/9.9
• Nominal Micron Rating: 10
• Operating Temp. (min): -13
• Operating Temp. (max): 248
• Flow Direction: Outside-In
• Capacity: 100.68
• Filter Area: 1028

Diámetros

• Attached: 0.0 ()* * 0.0 ()* * 0.0 ()*

Principales aplicaciones

• Principle Application: Various Industrial Hydraulic Applications
