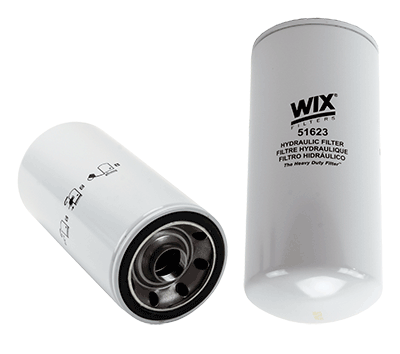

51623

Especificaciones Técnicas

• Part Number: 51623
• UPC Number: 765809516236
• Style: Spin-On Transmission Filter
• Service: Transmission
• Type: Full Flow
• Media: Cellulose
• Height: 10.287 (261)*
• Outer Diameter Top: 4.59 (117)*
• Outer Diameter Bottom: Closed:
• Thread Size: 1 5/16-12
• Beta Ratio: 2/20=12/27
• Burst Pressure-PSI: 680
• Max Flow Rate: 24-26 GPM
• Nominal Micron Rating: 25

Diámetros

• Attached: 4.200 (107)* * 3.662 (93)* * 0.415 (11)*

Principales aplicaciones

• Principle Application: Allison Transmissions HT740, HT750 (81-93) - High Efficiency version is 57623
