R64D10EV

Especificaciones Técnicas

• Part Number: R64D10EV
• UPC Number: 765809701946

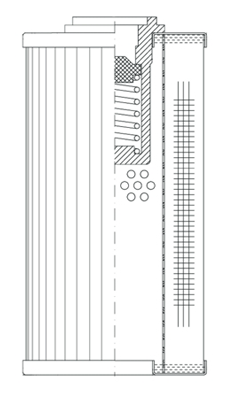

• Style: Cartridge Hydraulic Metal Canister Filter
• Service: Hydraulic
• Type: Full Flow/By-Pass
• Media: Microglass
• Height: 6.575 (167)*
• Outer Diameter: 1.772 (45)*
• Inside Diameter Top: 0.906 (23)*
• Inside Diameter Bottom: Closed:
• Thread Size:
• By-Pass Valve Setting-PSI: 29 PSI
• Beta Ratio: 200/9.9
• Nominal Micron Rating: 10
• Operating Temp. (min): -13
• Operating Temp. (max): 248
• Flow Direction: Outside-In
• Capacity: 16.89
• Filter Area: 173

Diámetros

• Packed: 0.0 ()* * 0.0 ()* * 0.0 ()*

Principales aplicaciones

• Principle Application: Various Industrial Hydraulic Applications
