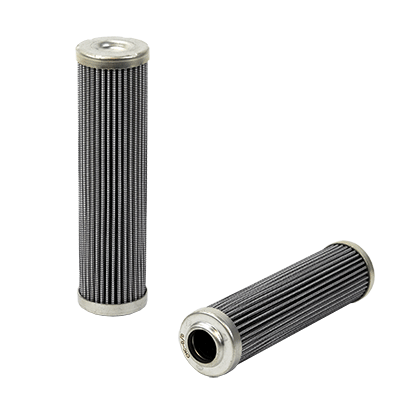

D57B10EV

Especificaciones Técnicas

• Part Number: D57B10EV
• UPC Number: 765809358584
• Style: Cartridge Hydraulic Metal Canister Filter
• Service: Hydraulic
• Type: Full Flow
• Media: Microglass
• Height: 6.811 (173)*
• Outer Diameter: 1.752 (44)*
• Inside Diameter Top: 0.87 (22)*
• Inside Diameter Bottom: Closed:
• Thread Size:
• Beta Ratio: 200/9.9
• Nominal Micron Rating: 10
• Operating Temp. (min): -13
• Operating Temp. (max): 248
• Flow Direction: Outside-In
• Capacity: 14.64
• Filter Area: 150

Diámetros

• Attached: 0.0 ()* * 0.0 ()* * 0.0 ()*

Principales aplicaciones

• Principle Application: Various Industrial Hydraulic Applications
