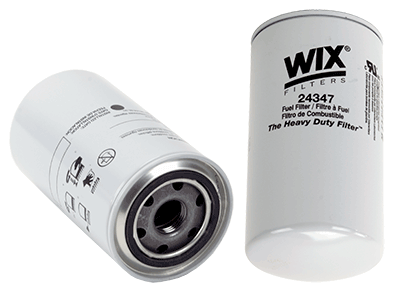

24347

Especificaciones Técnicas

• Part Number: 24347
• UPC Number: 765809243477
• Style: Spin-On Fuel Filter
• Service: Fuel
• Type:
• Media: Enhanced Cellulose
• Height: 6.987 (177)*
• Outer Diameter Top: 3.673 (93)*
• Outer Diameter Bottom: Closed:
• Thread Size: 1-12
• Burst Pressure-PSI: 285
• Max Flow Rate: 12-15 GPM
• Nominal Micron Rating: 10

Diámetros

• Attached: 2.729 (69)* * 2.415 (61)* * 0.255 (6)*

Principales aplicaciones

• Principle Application: Dispensing Pump Fuel Filter (UL Approved) If Shorter version required, use 24006 - if drain required, use 24348 - if base required, use 24001 or 24034 - also used on Volvo, Kenworth, Peterbilt, Ackerman applications
